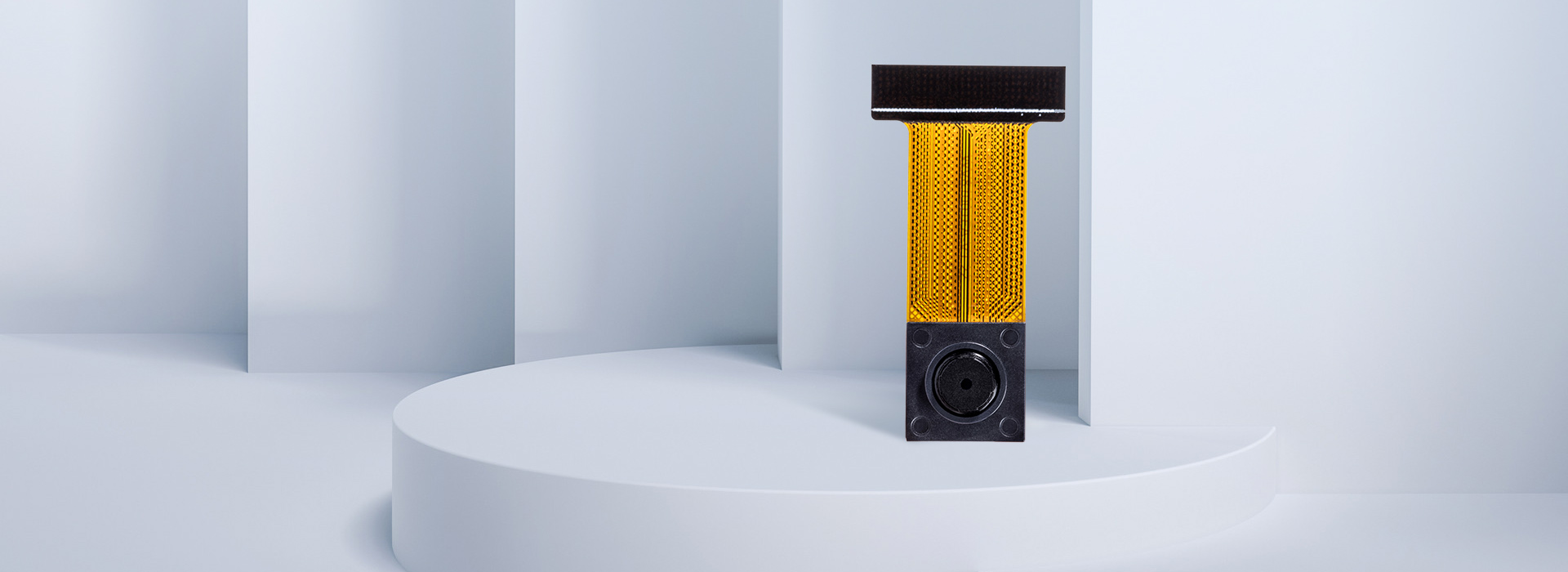

Mini hyperspectral camera module

Integrated MEMS-FPI and CMOS sensor, image sensor and lens customization. Image sensors are smaller and designed for consumer electronics users, and Hypernano Mini hyperspectral camera modules can be integrated into miniaturized smart devices such as mobile phones.

Get a solution

Product advantages

Miniaturization

Volume only 9.5mm*9.5mm*6.2mm
Simple structure

Compact, highly integrated, consumer level miniaturization demand
Band programmable

Wide spectrum continuous tunable, imaging sensor is optional

Specification

Imaging modalities	wavelength scanning type
Sensor	Multiple adaptation
Dimensions (mm)	9.59.56.2
Weight(g)	0.64
Operation temperature(℃)	-10 ~ 50
Lens	Multiple adaptation, can be customized

Spectral range (nm)	400 ~ 900
FWHM(nm)	< 20
OD	≤ 2
Central wavelength Accuracy (nm)	≤ 2
Wavelength switching rate(ms)	≤ 2
Power (mW)	<260

Application Scenario

Refrigerator

Meat quality, fruits and vegetables and other material detection, freshness analysis, etc.

Washing machine

Clothing cloth material, clothing stains and other identification.

Sweeping robot

Accurately identify stains, liquid and other target objects.
